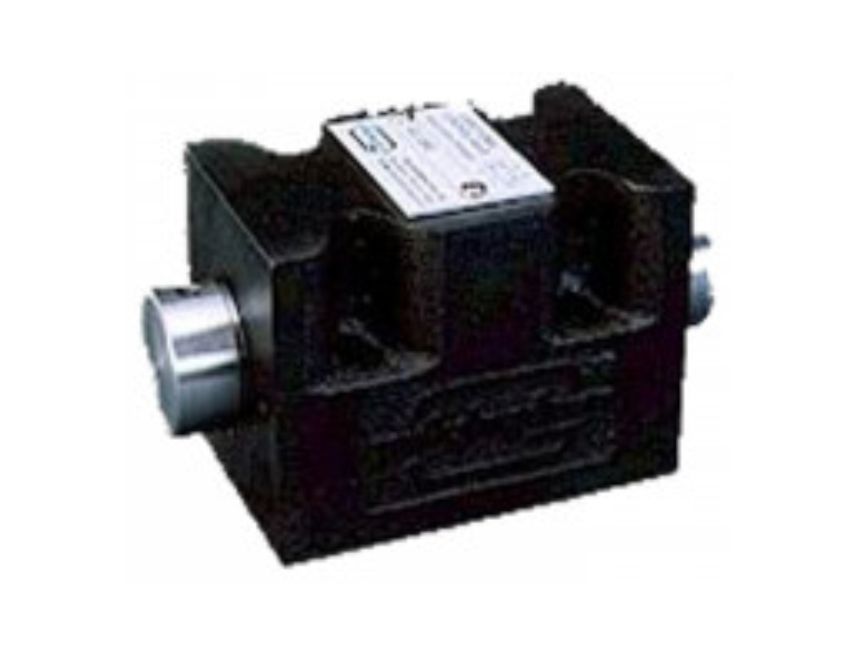

Pilot DC Valve 4DP10
Available as spring centered, spring offset. Valve mounting interface conforms to International and National standards.
Product Description
Unit Dimensions :
Construction ………………………………………………Spool type.
Mounting …………………………………………………..Subplate mounting as perISO 4401 – AC – 05 -4 – A andIS 10187 – 10 mm diameter nominal port.
Mounting position ……………………………………….Optional.
Flow direction …………………………………………….As per spool type.
Operating pressure ……………………………………..For port P, A and B ….. 350 bar.For port T ……………….. 250 bar.For port X and Y ………… 150 bar.
Minimum pilot pressure ………………………………..5 bar.
Hydraulic medium ……………………………………….Mineral oil.
Viscosity range ……………………………………………10 cSt to 380 cSt.
Fluid temperature range ………………………………-20 °C to +70 °C.
Fluid cleanliness requirement ……………………….As per ISO 16/13 or better.
Maximum flow handling capacity …………………..Refer performance curves.
Mass …………………………………………………………3.5 kg APPROX
